उत्पाद विवरण:

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा: 1
सबसे अच्छी कीमत संपर्क करें

विस्तार जानकारी
प्रतिरूप संख्या।: VS-052 ~ VS-400 शक्ति: वायवीय
दबाव की दिशा: डबल-एक्टिंग सिलेंडर पिनियन सामग्री: कठोर मिश्र धातु इस्पात
पिनियन कोटिंग: निकल चढ़ाया हुआ (15um से अधिक) एक्चुएटर बॉडी मटेरियल: एल्यूमीनियम एक्सट्रूज़न
एक्चुएटर बॉडी कोटिंग: हार्ड एनोडाइज्ड (30um से अधिक) अंत कैप सामग्री: डाई कास्टिंग एल्यूमीनियम
अंत कैप कोटिंग: एपॉक्सी लेपित (80um से अधिक) पिस्टन सामग्री: डाई कास्टिंग एल्यूमीनियम
पिस्टन कोटिंग: हार्ड एनोडाइज्ड (30um से अधिक) यात्रा समायोजन: ±5º खुली/बंद स्थिति में
वसंत सामग्री: उच्च तन्यता वाला स्टील स्प्रिंग कोटिंग: एपॉक्सी लेपित
बीयरिंग सामग्री: अत्यधिक टिकाऊ यौगिक
प्रमुखता देना:

Travel Adjustment ±5º Pneumatic Actuator

,

High Performance Springs Pneumatic Air Actuator

,

Precision Ground Pinion Pneumatic Rotary Actuator

उत्पाद विवरण

Single Acting Pneumatic Actuator
Key Features
  • Position Indicator: Standard Namur mounting for accessory attachment on all VESON pneumatic actuators
  • Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions and material options (stainless steel, aluminum alloy) available
  • Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available
  • Corrosion-Resistant End Caps: Epoxy-coated (over 80μm) die-cast aluminum with optional PTFE treatment
  • Precision Piston: Hard-anodized (over 30μm) die-cast aluminum with high-quality guides. Twin rack and pinion design ensures consistent torque output
  • Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts
  • High-Performance Springs: Epoxy-coated high tensile steel for corrosion resistance and extended service life. Pre-loaded design allows safe, rapid disassembly
  • Premium Bearings & Guides: High-durability compound material provides stable thrust with minimal friction for long operational life
Product Images

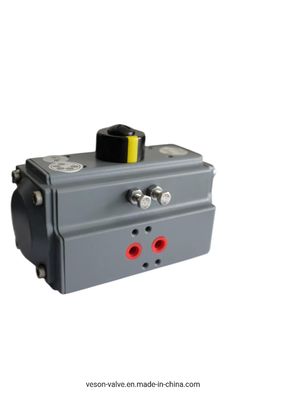

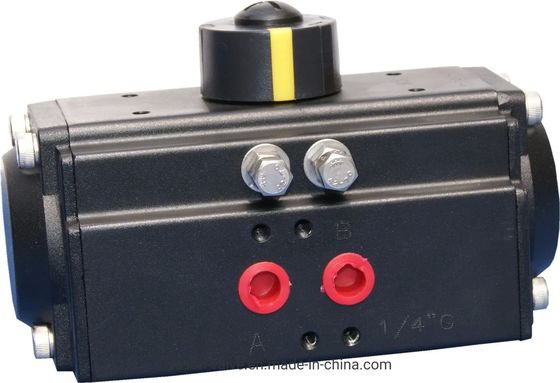

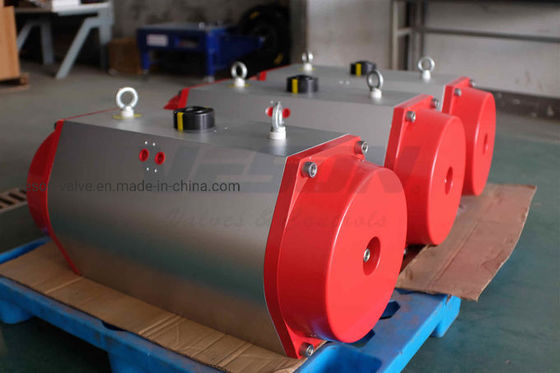

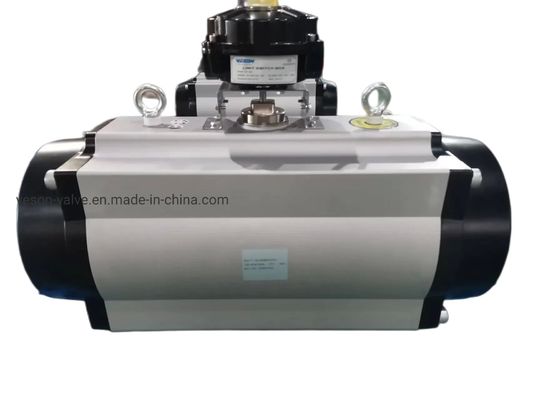

Single Acting Pneumatic Actuator with Travel Adjustment ±5º High Performance Springs and Precision Ground Pinion 0 Single Acting Pneumatic Actuator with Travel Adjustment ±5º High Performance Springs and Precision Ground Pinion 1 Single Acting Pneumatic Actuator with Travel Adjustment ±5º High Performance Springs and Precision Ground Pinion 2
