Gate Valves Spring Return Pneumatic Actuators for Gate valves Closed-Loop Systems
उत्पाद विवरण:
| Place of Origin: | China |
| ब्रांड नाम: | VESON |
| प्रमाणन: | ISO CE |
| Model Number: | VSL |
भुगतान & नौवहन नियमों:
| Minimum Order Quantity: | 1 |
|---|---|
| मूल्य: | Exw Fob Shanghai |
| Packaging Details: | plywood case with reinforced packing |
| Delivery Time: | 6-8 weeks |
|
विस्तार जानकारी |
|||
| HSF: | VSL Pneumatic linear actuators | Material: | carbon steel |
|---|---|---|---|
| Color: | Standard color is red | Acting type: | single acting/ double acting |
| certification: | ISO CE | Key words: | heavy duty linear actuator |
उत्पाद विवरण

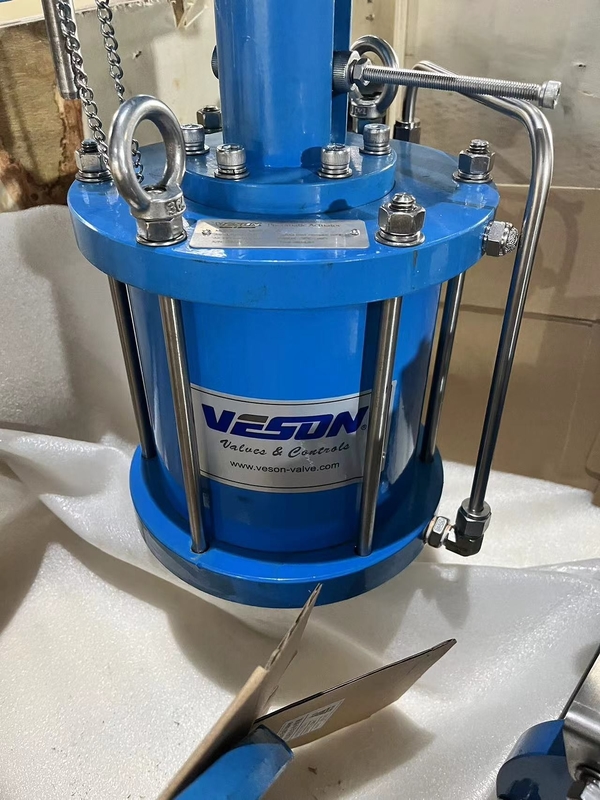

Pneumatic Cylinder High Speed Linear Valve Actuator For Rising Stem Valves Carbon Steel Material
Pneumatic Actuators – Linear series
Modular Design Construction
1. SPRING CONTAINER
- Several spring containers available
2. PNEUMATIC CYLINDER
- Widest variety of cylinders available
- Widest variety of cylinders available
3. HYDRAULIC CYLINDER
- Widest variety of cylinders available
- Implemented with hydraulic pump for manual override HP
4. JACK SCREW WITH HAND-WHEEL
- HW manual override suitable for smaller actuators
5. HAND-WHEEL WITH GEARBOX
- Hand-wheel with gearbox
6. MOUNTING BRACKET
- Open type
7. CONTROL SYSTEM
- Panel or cabinet version
- Customized design
Modularity
Veson VSL actuators all share a common construction philosophy known as modularity, which is achieved by utilizing a consistent engineering design throughout our complete range.
Power cylinders, spring containers, manual overrides, control systems, and other features can be assembled in various different positions thus allowing to cover all requests in terms of fail position and additional features.
With the large stock of finished and semi-finished components always available, actuators can be assembled and supplied with very fast deliveries.
Our Services
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service
